AHP STD Series up to 200 bar

Heavy Duty Cylinders-004


Heavy duty cylinders have robust design to withstand heavy force at high pressure. Cylinders are available from Bore Ø 40 to 400 mm & can sustain pressure up to 350 Bar.

Available in different mountings
• Flange Mounting
• Clevis Mounting

Application
• Hydraulic Press


Round End Cylinder

Bore dia 40mm to 400mm, Stroke lengths up to 2,400mm for pressures up to 350kg/cm2

Round End Cylinder :
Bore: Ø40 to 400mm
Stroke length: Up to 2400mm
Pressure: Up to 250kg/cm2

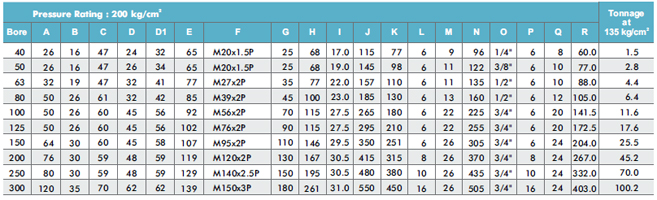

Dimensions :


• Piston and piston rod are supported with replaceable self-lubricating bronze fined PTFE bearings which provide accurate and smooth frictionless movement
• End covers are all fabricated and are of robust design to withstand heavy forces. Cold phosphatizing is done for rust prevention prior to painting
• Wide varietites of mounting styles are available
• Tie rod design makes the cylinder rugged and maintenance easier
• Inspection : Hydrostatic pressure testing of all hydraulic cylinders at maximum working pressure for leakages and guaranteed performance
• Optional piston rod and threads may be offered on request
• For special cylinders like double-ended cylinders, stroke adjustment cylinders and cylinders for mobile application, please contact our Sales Department.



Clevis End Cylinder :
Bore: Ø40 to 400mm
Stroke length: Up to 2400mm
Pressure: Up to 250kg/cm2
